Conductive Silicone Zebra Elastomeric Connectors
Insulation Coated Connectors

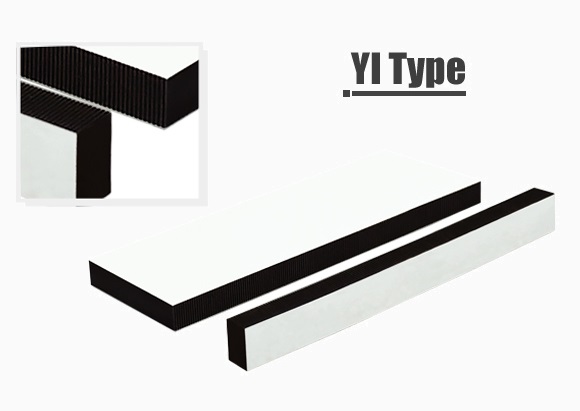

YI TYPE
YI type is basically YL type of inter-connector with two surfaces coated with silicone insulation ink to prevent short circuit if metal housing is used.
APPLICATIONS
Numerous including Digital Watch & small-sized LCD

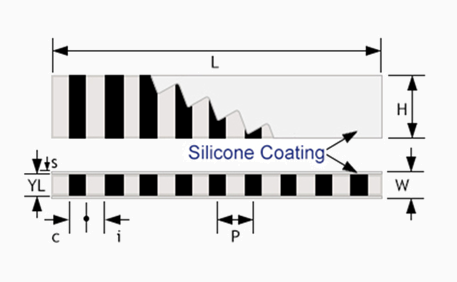

DIMENSIONS
TOLERANCES
| (unit: mm) | ||||
| 0.05P | 0.1P | 0.18P | ||
| P | PITCH | 0.05 ± 0.015 | 0.1 ± 0.03 | 0.18 ± 0.04 |
| L | LENGTH | L≤70 ±0.3 70 < L≤120 ±0.4 120<L≤200 ±0.6 200<L≤300 ±0.8 |
||
| H | HEIGHT | 1.0<H≤5.0 ±0.1 5.0<H≤20 ±0.15 | ||
| W | WIDTH | 0.3<W | ||
| C | CONDUCTOR WIDTH | 0.025 | 0.05 | 0.09 |
| I | INSULATOR WIDTH | 0.025 | 0.05 | 0.09 |
| S | COATING | 0.02 - 0.04 | ||
| YL | CORE WIDTH | YL=0.4 ±0.1mm when W ≤ 1.2mm YL=0.5 ±0.1mm when W = 1.3mm YL≥0.6 ±0.1mm when W≥1.4mm |
||
Remarks: 0.03 pitch is available

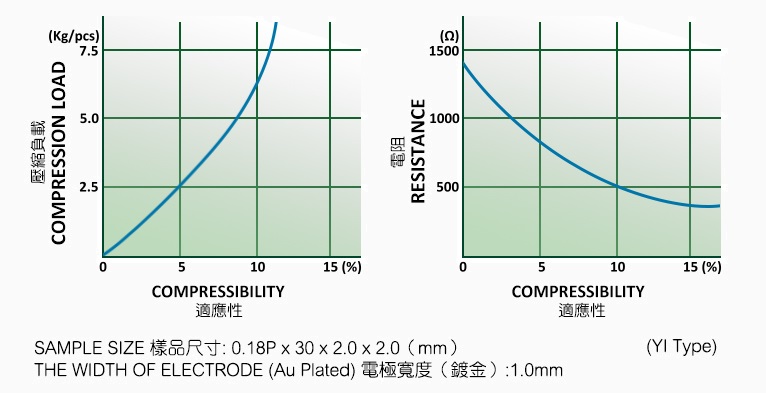

COMPRESSION CURVES
