(YP) Sponge Connectors


Conductive Silicone Zebra Elastomeric Connectors

Sponge Connectors

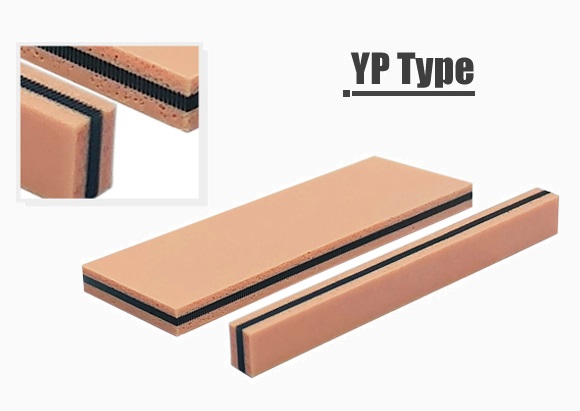

YP TYPE

YP type of inter-connectors are basically YL type connectors fitted with sponge rubber insulators on both sides. Since sponge rubber insulators are more compressible than those in YS type products, YP type inter-connectors are suitable for connecting large sized LCD's to PCB's.

APPLICATIONS

General LCD products such as Calculator, Electronic Toy, Telecommunication, Audio and Visual products.

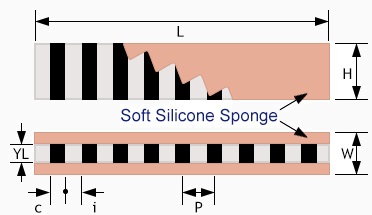

DIMENSIONS


TOLERANCES

(unit: mm)
    0.05P 0.1P 0.18P
P PITCH 0.05 ± 0.015 0.1 ± 0.03 0.18 ± 0.04
L LENGTH L ≤ 70 ±0.3 70<L≤120 ± 0.45
120<L≤200 ±0.7 200<L≤300 ± 0.9
H HEIGHT 1.5<H≤5.0 ± 0.1 5.0<H≤15 ± 0.15
W WIDTH 1.2<W≤2.5 ± 0.15 2.5<W≤4 ± 0.2
C CONDUCTOR WIDTH 0.025 0.05 0.09
I INSULATOR WIDTH 0.025 0.05 0.09
YL CORE WIDTH YL=0.4 ±0.1mm when W ≤ 1.2mm
YL=0.5 ±0.1mm when W = 1.3mm
YL≥0.6 ±0.1mm when W≥1.4mm

Remarks: 0.03 pitch is available

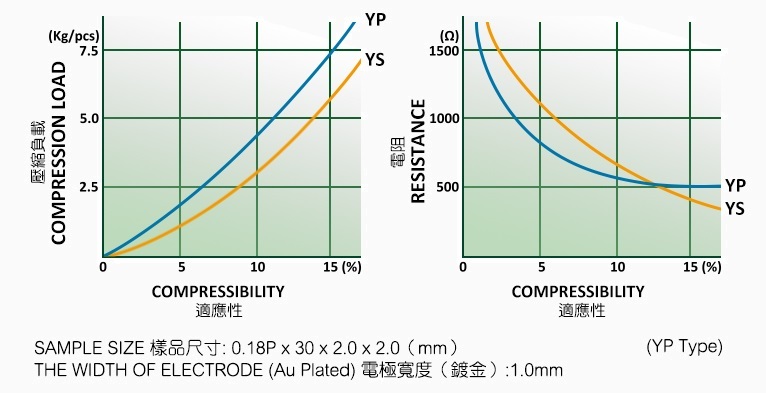

COMPRESSION CURVES

SPECIAL TYPE
